Specifications:
-
BN14155W-UL Low Voltage Enclosure
-
Exterior Surface Mounted Enclosure
-

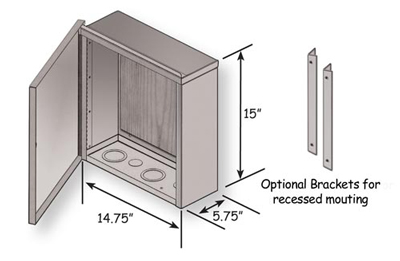

14-3/4″ Wide x 15″ Tall x 5-3/4″ Deep
-
Weight: 18 lbs.
This enclosure is made of 16-gauge zinc-coated fabricated steel with a hinged door and a 18-gauge zinc-coated fabricated steel body. Both are powder coated with a tan finish. This surface mounted service box is fully enclosed. It also includes a 3/4″ plywood backboard for easy mounting of low-voltage utility equipment. The BN14155W-UL is UL listed (UL1863) and designed to NEMA 3R Specifications. The reinforced hinged door fastens with a standard 7/16″ box or socket wrench.This box has “Communication” embossed on the lid.

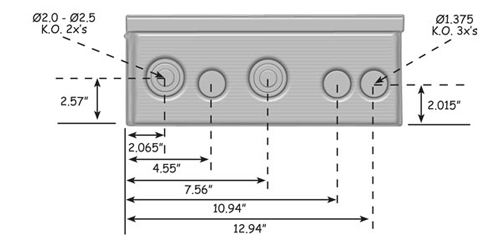

This enclosure is nailed or screwed to an existing surface. This enclosure includes 2 knockout 2″ to 2-1/2″ (for 1-3/4″ to 2-1/4″ conduit) and 3 knockouts 1-3/8″ ( for 1-1/4″ conduit). This exterior surface mounted enclosure is specifically designed to house utility/security/home audio-video wiring demarcation devices
