BN24268W-UL Low Voltage Enclosure
Specification: BN24268W-UL Low Voltage Enclosure
Exterior Surface Mounted Enclosure
24″ Wide x 26″ Tall x 8″ Deep
Weight: 53 lbs.

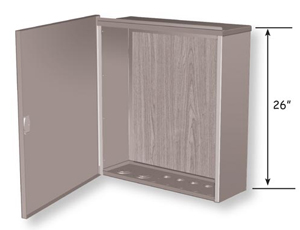

This enclosure is made of 16-gauge zinc-coated fabricated steel with a hinged door. Both are powder coated with a tan finish. This surface mounted service box is fully enclosed. The door is embossed with the word “Communication”. It also includes a 3/4″ plywood backboard for easy mounting of low-voltage utility equipment, and a 4-position #4-14 wire ground bar is mounted inside. The BN24268W-UL is UL listed (UL1863) and designed to NEMA 3R Specifications. The reinforced hinged door fastens with a standard 7/16″ can or socket wrench.

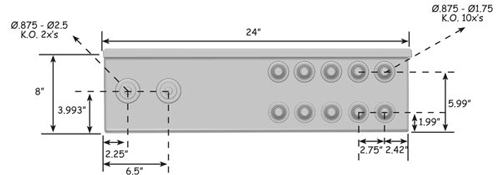

This enclosure is nailed or screwed to an existing surface. This enclosure includes 2 bottom knockouts 7/8″ to 2-1/2″ (for 3/4″ to 2″ conduit) and 10 bottom knockouts 7/8″ to 1-3/4″ (for 3/4″ to 2″ conduit). This enclosure also includes 2 “J-Hooks” for ease of mounting. This exterior surface mounted enclosure is specifically designed to house communication / utility/security/home audio-video wiring demarcation devices.
