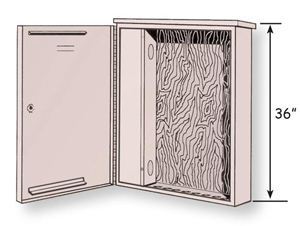

BN38369WS-UL Low Voltage Enclosure


Description

Specifications:

  • BN38369WS-UL Low Voltage Enclosure
  • Exterior Surface Mounted Enclosure
  • >>With Splice Chamber<<
  • 38″ Wide x 36″ Tall x 9″ Deep
  • Weight: 135 lbs.

This enclosure is made of 14-gauge zinc-coated fabricated steel with a hinged door. Both are powder coated with a tan finish. This surface mounted service box is fully enclosed. The door is embossed with the word “Communication”. It also includes a 3/4″ plywood backboard for easy mounting of low-voltage utility equipment and a 4-position #4-14 wire ground bar mounted inside. The BN38369WS-UL is UL listed (UL1863) and designed to NEMA 3R Specifications. The reinforced hinged door fastens with a standard 7/16″ box wrench.

This enclosure is nailed or screwed to an existing surface. This enclosure includes 2 bottom knockouts 2-1/2″ to 3-1/2″ (for 3″ t0 4″ conduit) and 8 bottom knockouts 1-3/8″ to 1-3/4″ (for 1″ to 1-1/2″ conduit). This enclosure also includes 2 “J-Hooks” for ease of mounting. This exterior surface mounted enclosure is specifically designed to house communication / utility/security/home audio-video wiring demarcation devices.
