BN48489W-UL Low Voltage Enclosure
Exterior Surface Mounted Enclosure
48″ Wide x 48″ Tall x 9″ Deep Weight: 190 lbs.
This enclosure is made of 14-gauge zinc-coated fabricated steel with a hinged door. Both are powder coated with a tan finish. This surface mounted service box is fully enclosed. The door is embossed with the word “Communication”. It also includes a 3/4″ plywood backboard for easy mounting of low-voltage utility equipment and a 4-position #4-14 wire ground bar mounted inside. The BN48489W-UL is UL listed (UL1863) and designed to NEMA 3R Specifications. The reinforced hinged double doors fastens with a standard 7/16″ can or socket wrench.

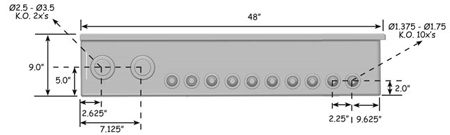

This enclosure is nailed or screwed to and existing surface. This enclosure includes 2 bottom knockouts 2-1/2″ to 4-1/2″ (for 2″ t0 3″ conduit) and 10 bottom knockouts 1-3/8″ to 1-3/4″ (for 1″ to 1-1/2″ conduit). This enclosure also includes 2 “J-Hooks” for ease of mounting. This exterior surface mounted enclosure is specifically designed to house communication / utility/security/home audio-video wiring demarcation points.
This enclosure is also available with a splice chamber, please order: BN48489WS-UL
