MMH Steel Series: Interior Enclosures (Hinged Door)
14144-MMH
Universal Mount - All Modules
14104-MMH
14144-MMH
14284-MMH
14424-MMH
Knockout Diagram - MMH Series
PRODUCT SUMMARY
The MMH Steel Series Interior Enclosures from Benner-Nawman provide durable structured wiring solutions for residential and commercial installations. Constructed from zinc-coated steel with a powder-coat white finish, these recessed enclosures feature a hinged door and universal mounting pattern compatible with most module brands. Multiple knockout options and side-mounting slots provide installation flexibility for multimedia, telecom and structured wiring applications.
Features
- Zinc-coated steel construction; Powder-coat white finish
- 20 gauge box / 18 gauge door
- Hinged Door is included; (see MM series for removable lid option)
- Universal Mounting pattern - accepts most module brands
- Mounts prior to drywall between 16" center studs
- Side-mounting slots and depth markings
- Knockouts: Top and bottom; AC knockout on bottom with additional options on sides and rear panel
- UL-listed (Most Models)
- Designed to NEMA 3R Standards
MMH Series Models Include
- Mounting Screws
- Instruction Sheet
- Knockout Grommets
- Cardboard overspray shield
Close
BUY ONLINE | Available Now from these Distributors

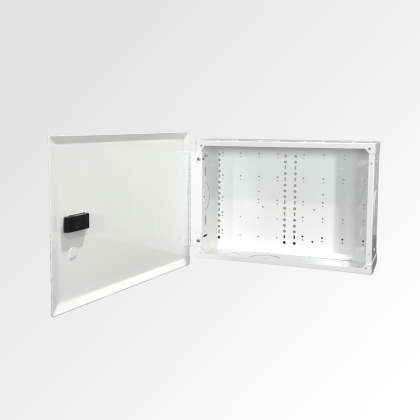

| Model Numbers: | 14104-MMH: 14-1/4 x 4 x 10" (8 lbs) |

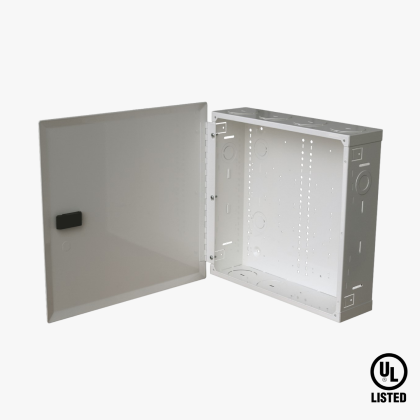

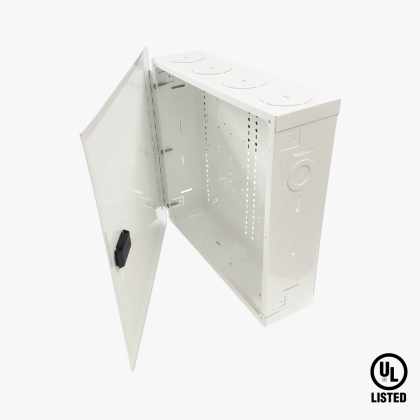

| 14144-MMH: 14-1/4 x 4 x 14" (10 lbs) [UL 985, UL 1023] | |

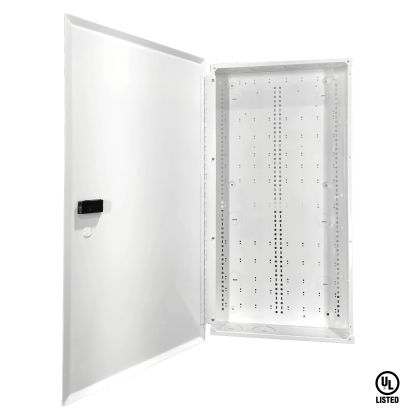

| 14284-MMH: 14-1/4 x 4 x 28" (17 lbs) [UL 985, UL 1023] | |

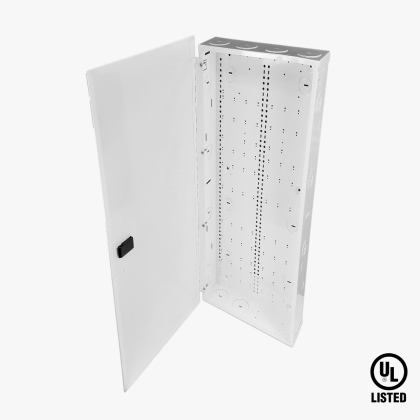

| 14424-MMH: 14-1/4 x 4 x 42" (25 lbs) [UL 985, UL 1023] |
