  • BN30369-UL Low Voltage Enclosure


    Exterior Surface Mounted Enclosure

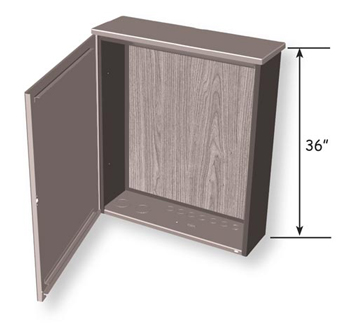

    Specification: BN30369W-UL Low Voltage Enclosure
    Exterior Surface Mounted Enclosure
    30″ Wide x 36″ Tall x 9″
    Deep
    Weight: 105 lbs.

    This enclosure is made of 14-gauge zinc-coated fabricated steel with a hinged door. Both are powder coated with a tan finish. This surface mounted service box is fully enclose.The door is embossed with the word “Communication”. It also includes a 3/4″ plywood backboard for easy mounting of low-voltage utility equipment and a 4-position #4-14 wire ground bar mounted inside. The BN30369W-UL is UL listed (UL1863) and designed to NEMA 3R Specifications. The reinforced hinged door fastens with a standard 7/16″ can or socket wrench.

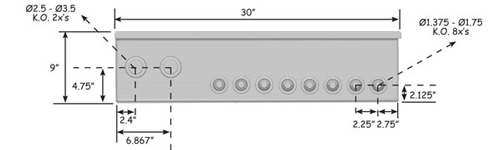

    This enclosure is nailed or screwed to an existing surface. This enclosure includes 2 bottom knockouts 2-1/2″ to 3-1/2″ (for 2″ to 3″ conduit) and 8 bottom knockouts 1-3/8″ to 1-3/4″ (for 1″ to 1-1/2″ conduit). This enclosure also includes 2 “J-Hooks” for ease of mounting. This exterior surface mounted enclosure is specifically designed to house communication / utility/security/home audio-video wiring demarcation devices.
    This enclosure is also available with a splice chamber, please order: BN30369WS-UL
