MM Series: Interior Structured Wiring Enclosures (Lid)
14424-MM Interior Structured Wiring
14104-MM
14144-MM
14284-MM
14424-mm

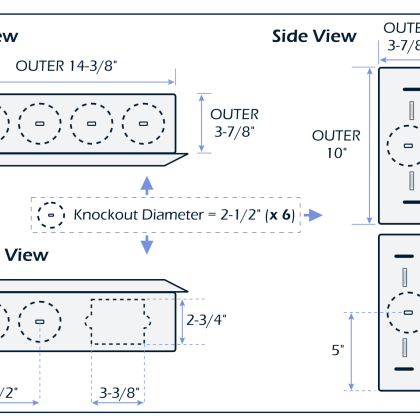

Knockout Diagram - MM Series
PRODUCT SUMMARY
Features
- Zinc-coated steel construction; Power-coat white finish
- 20 gauge box / 18 gauge lid
- Lid is attached by 4 screws (see MMH series for hinged door option)
- Universal Mounting pattern - accepts most module brands
- Mounts prior to drywall between 16" center studs
- Side-mounting slots and depth markings
- Body or lid may be purchased separately
- Knockouts: Top and bottom; AC knockout on bottom with additional options on sides and rear panel
- UL-listed
- Designed to UL 1863 and NEMA 3R Standards

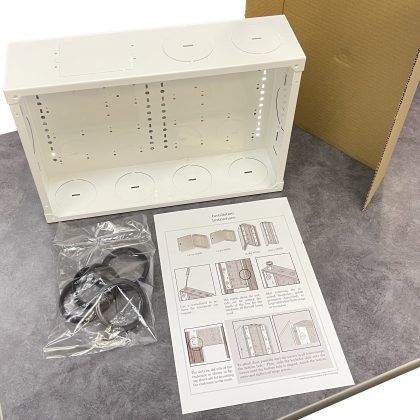

MM Series Models Include
- Mounting Screws
- Instruction Sheet
- Cardboard overspray shield
Close
BUY ONLINE | Available Now from these Distributors
| Model Numbers: | 14104-MM: 14-1/4 x 4 x 10" (8 lbs) |
| 14144-MM: 14-1/4 x 4 x 14" (10 lbs) | |
| 14284-MM: 14-1/4 x 4 x 28" (17 lbs) | |
| 14424-MM: 14-1/4 x 4 x 42" (25 lbs) |
