14164F-MMH Folding Plastic Enclosure (WiFi-Ready)

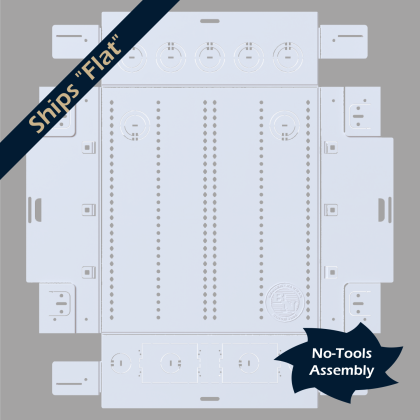

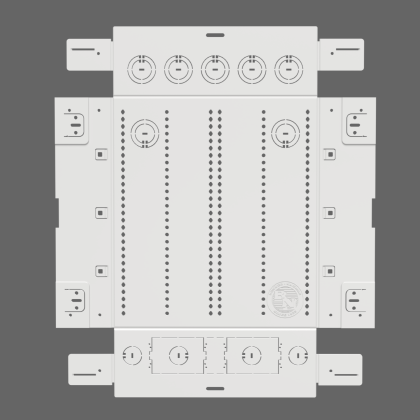

Enclosure Ships Flat - Easy Assembly

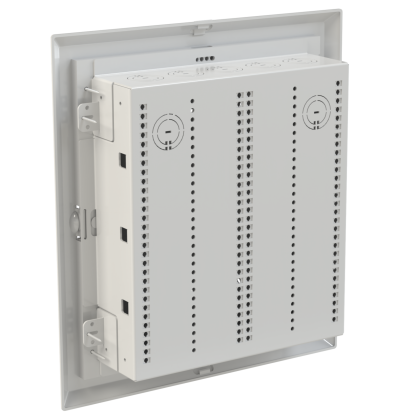

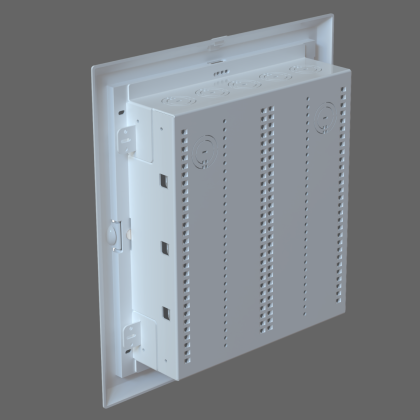

Rear View

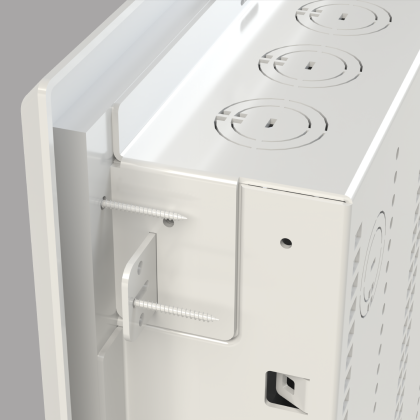

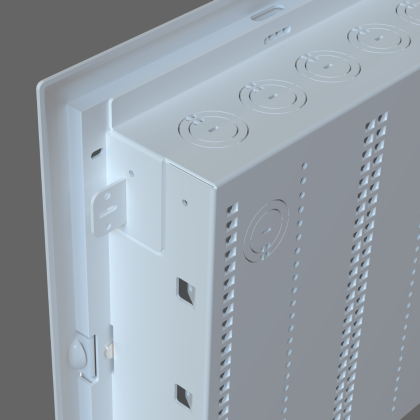

Assembled - Tabs Closeup

PRODUCT SUMMARY

Our newest "flat" wiring cabinet - Coming Soon!

- July 2026 -

The 14164F-MMH is a smaller-sized folding enclosure for applications where a larger box isn't needed - take advantage of the efficiency of storing multiple boxes for installation in a small space, as the box ships flat with simple fold & snap assembly!

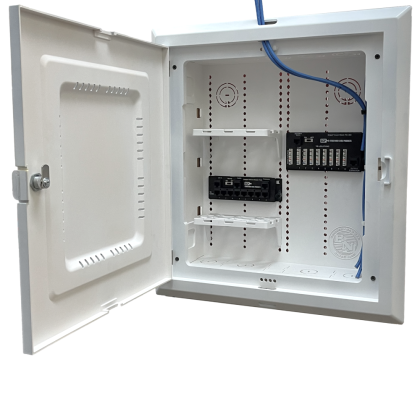

  • 14" W x 16" H x 4" D:  WiFi-friendly structured wiring cabinet with universal mount pattern
  • Durable polypropylene construction does not block WiFi signal

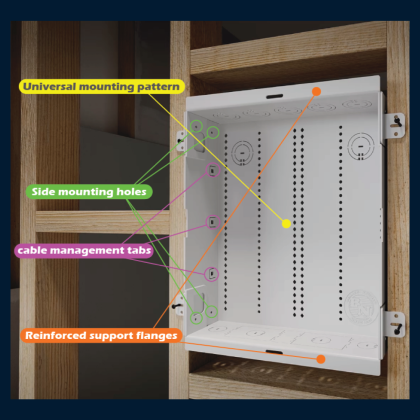

  • Enclosure body mounts under drywall between 16" center studs (mounting screws/instructions included)
  • Folding sides with locking tabs that allow unit to ship flat - but assemble in seconds (no tools!)

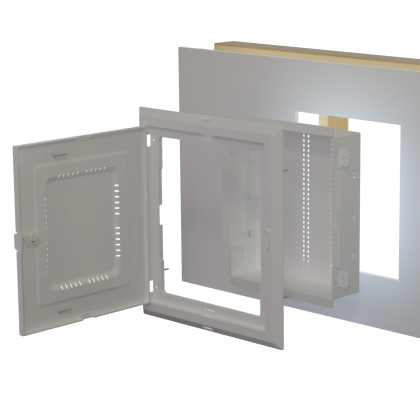

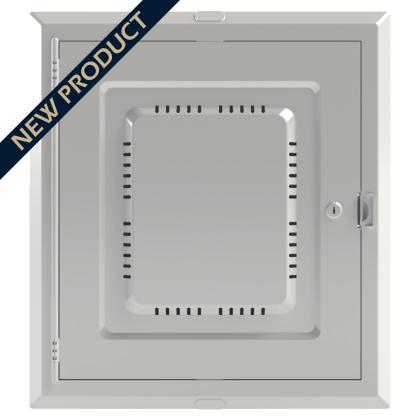

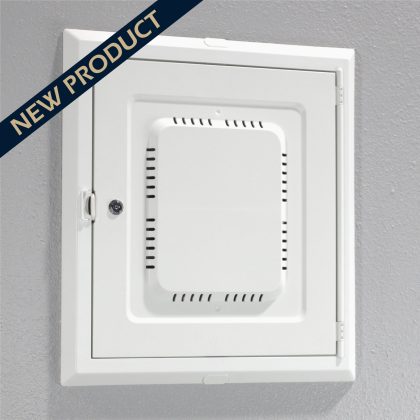

  • Vented, locking hinged door included; mounts to studs with drywall in between (includes 2 keys)
  • Sold individually, or in volume packs
  • Lightweight

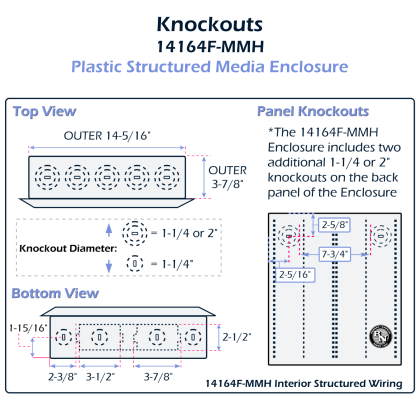

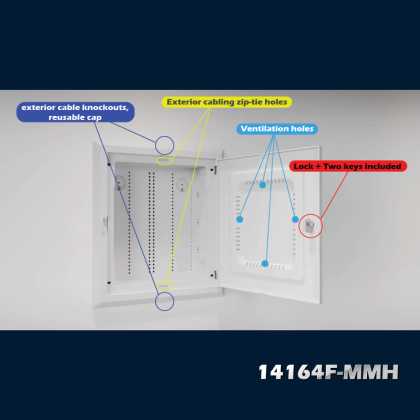

  • Knockouts:  Top and bottom; AC knockout on bottom with five 2" knockouts on top; two rear panel knockouts
  • Top and bottom exterior cable knockouts on door frame for direct cabling with door closed
  • Save Time, Save Money, Save Space!
Downloads

Instructions  |  Brochure

 Close
Benner-Nawman Model # 14164F-MMH
Color White
Material Polypropylene
Installed Size 14" W x 16"H x 4" D
Assembled Weight 5 lbs.
Cover Type Frame + Hinged Door (key lock)
Cover mounting side Door may be mounted to open on left or right side
Mount Pattern Universal; fits most module brands
WiFi Compatible Polypropylene construction is WiFi-transparent and allows signal to transmit from inside device
